Model LG 580.72087 200 THROUGH THE WALL AC – Common Parts & Diagrams
Diagram 0

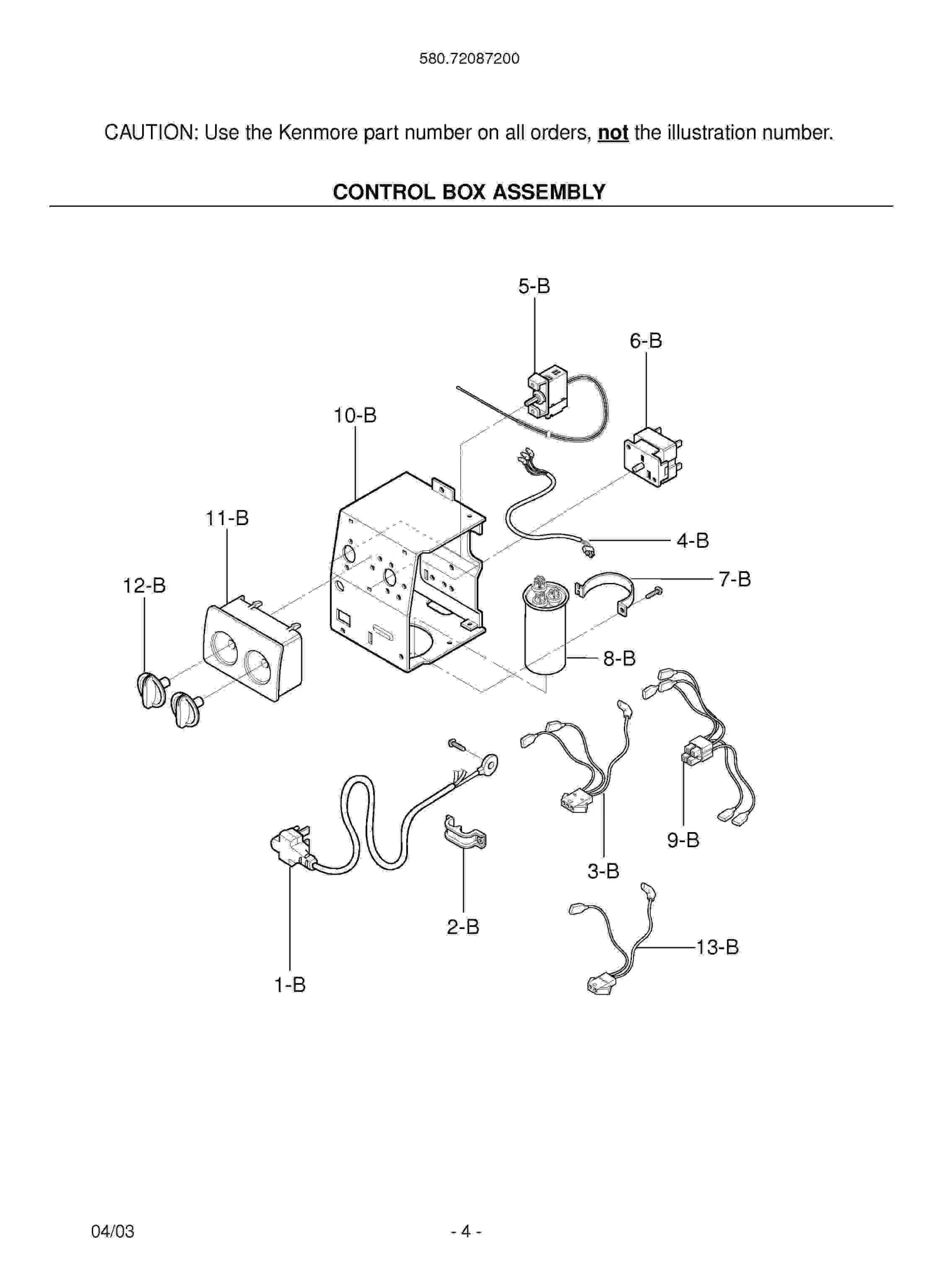

Diagram 1

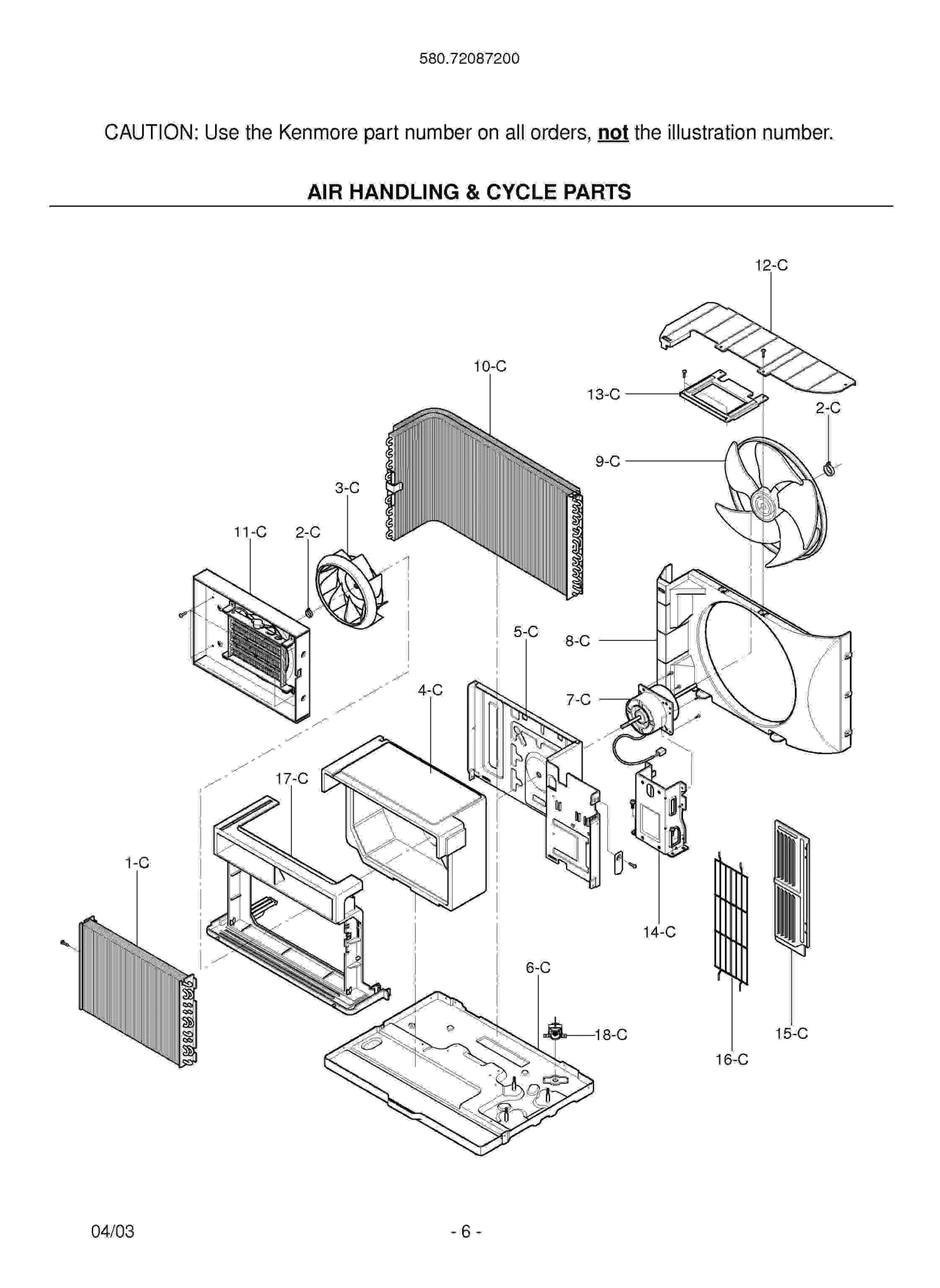

Diagram 2

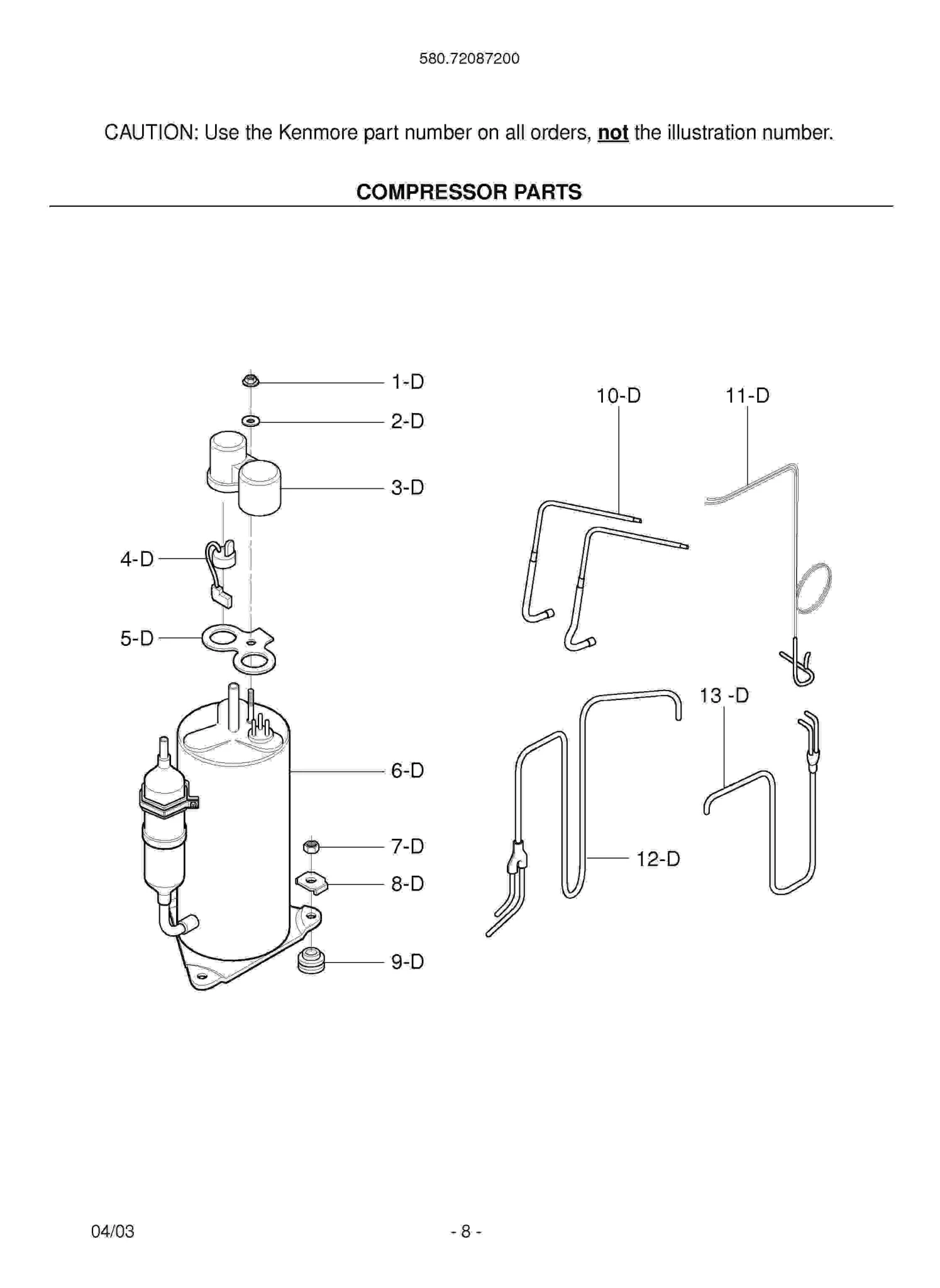

Diagram 3

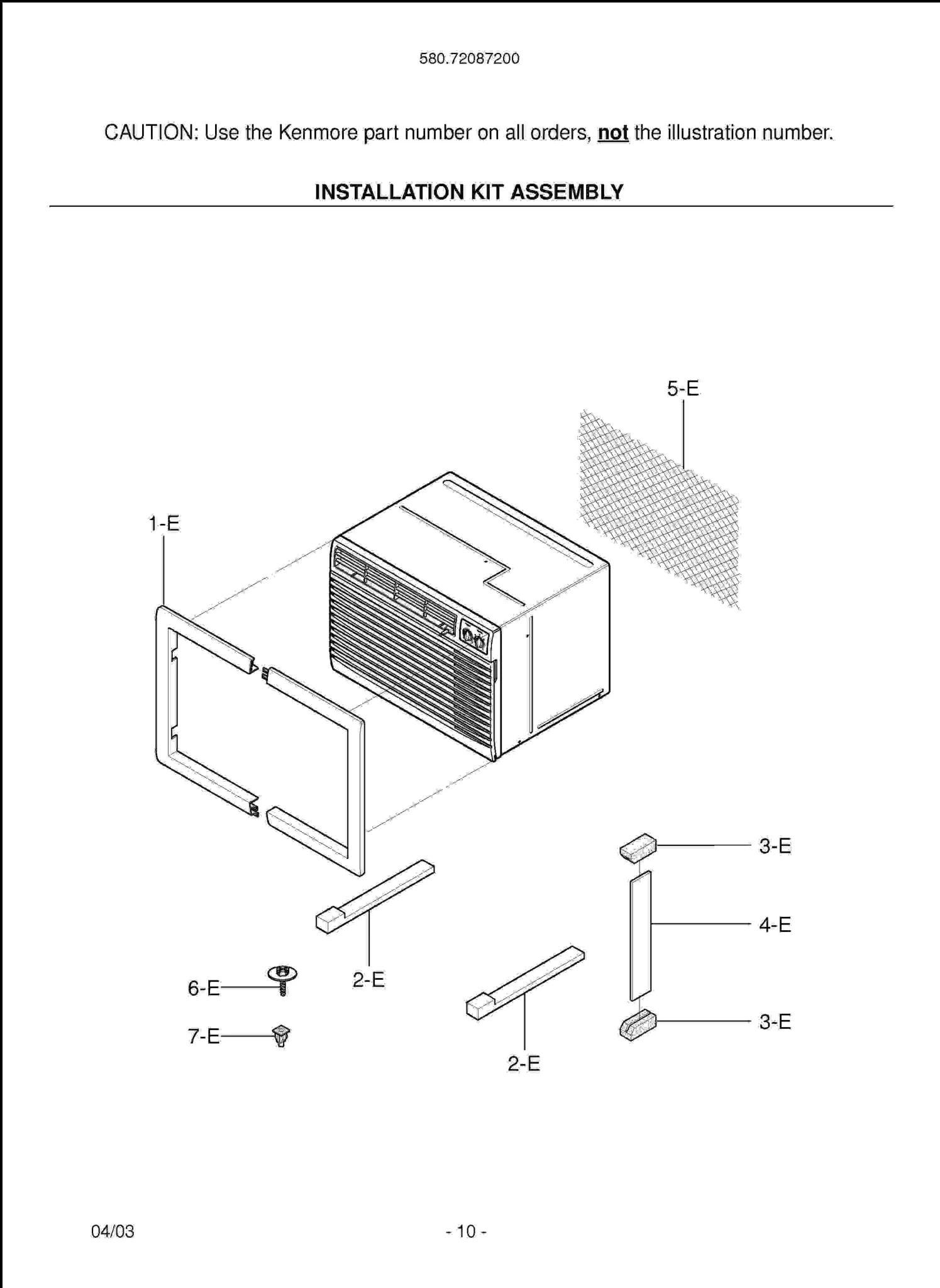

Diagram 4
Common parts from model LG 580.72087 200 THROUGH THE WALL AC
35211A
TUBE ASSEMBLY,SUCTION SINGLE LGE 5211A20498A Contact Us For Availability
130410
BASE ASSEMBLY,SINGLE LGE 3041A10038B Contact Us For Availability
130900
CABINET LGE 3090A20003B Contact Us For Availability
135301
GRILLE,FRONT LGE 3530A20019B Contact Us For Availability
135303
GRILLE,INLET LGE 3530A20054A Contact Us For Availability
135500
COVER LGE 3550A20030B Contact Us For Availability
135500
COVER,TERMINAL LGE 3550U-L004A Contact Us For Availability
137215
PANEL ASSEMBLY,CONTROL LGE 3721A20049G Contact Us For Availability
145200
LINK LGE 4520A20003A Contact Us For Availability
147582-1
LOUVER,VERTICAL LGE 4758A20009A Contact Us For Availability
147582-2
LOUVER,VERTICAL LGE 4758A20009B Contact Us For Availability
149410
KNOB ASSY LGE 4941A30005B Contact Us For Availability
152302
FILTER(MECH),A/C LGE 5230A20007A Contact Us For Availability
249940
CONTROL BOX,SINGLE LGE 4994A20018B Contact Us For Availability
264110
POWER CORD ASSY LGE 2H00677U Contact Us For Availability
266003
SWITCH ROTARY_2H00598E IS NOT A VALID ALTERNA LGE 2H00598F Contact Us For Availability
268770
CONNECTOR ASSY LGE 6631AR2667E Contact Us For Availability
268770
LEAD WIRE ASSY LGE 6631AR2687L Contact Us For Availability
269310
THERMOSTAT ASSY LGE 2H01127D Contact Us For Availability
346811
MOTOR ASSEMBLY,SINGLE LGE 4681A20044D Contact Us For Availability
349001
DAMPER,VENTILATION LGE 4900A20001A Contact Us For Availability
349600
MOUNT,MOTOR LGE 4960A20005A Contact Us For Availability
352113
TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211A30588F Contact Us For Availability
352115
TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A20289C Contact Us For Availability
354210
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20071E Contact Us For Availability
435300-1
GRILLE,REAR LGE 3530A30002A Contact Us For Availability
435300-2
GRILLE,REAR LGE 3530A30007A Contact Us For Availability
552111
TUBE ASSEMBLY,CAPILLARY LGE 5211A20214N Contact Us For Availability
554031
CONDENSER ASSEMBLY,BENT LGE 5403A20040P Contact Us For Availability
554160
COMPRESSOR SET LGE 2520UAFK2AB Contact Us For Availability
559010
FAN "WC" CHASSIS LW-C1211/1011 LGE 5900AR1173A Contact Us For Availability
648600
CLAMP CAPACITOR MJ/GA-1014LCM LGE 4H00442F Contact Us For Availability
738501
LGE 3850A20928R LGE 3850A20928R Contact Us For Availability
753010
HEATER ASSY,ELECTRIC LGE 5301A20011A Contact Us For Availability
W0CZZ
CAPACITOR,DRAWING LGE 0CZZA20008A Contact Us For Availability
W1NHA
NUT.M8 D 8.0 M C 1 SM20C/FZ GA LGE 1NHA0801206 Contact Us For Availability
W1WZZ
GASKET-NUT <GA-0711HCR/0712HCM LGE 4H01058A Contact Us For Availability
W4004
CLIP LGE 4004AR4357A Contact Us For Availability
W6631
CONNECTOR ASSEMBLY LGE 6631AR2668H Contact Us For Availability
× ![]()
